MOSFET-Shenzhen MMIC Microelectronics Co. Ltd

Parametric Search Selector

Part Number	Images	VDS(V)	ID (A)	RDS(ON)_Typ@VGS=10V (mΩ)	RDS(ON)_Max@VGS=10V (mΩ)	VGS_Max(TH) (V)	VGS_Min(TH) (V)	Qg_Typ (nC)	Ciss_Typ (pF)	Package	Alternative Partnumber

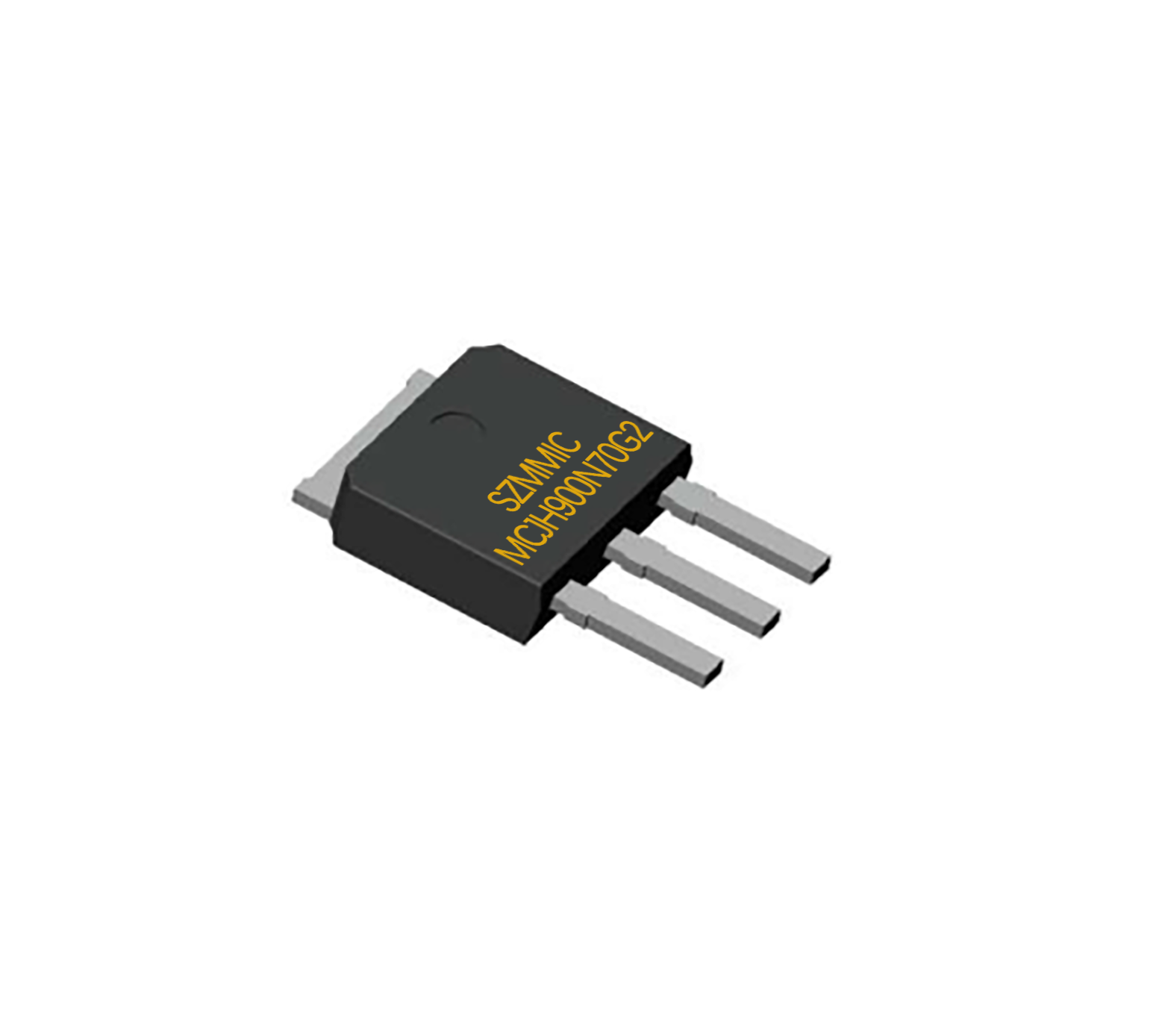

MCJH900N70G2	MCJH900N70G2	700	6	780	900	4	3	11	325	TO-251	CRJH900N70G2
MCJD900N70G2	MCJD900N70G2	700	6	780	900	4	3	11	325	TO-252	CRJD900N70G2
MCJF360N70G2-ZT06	MCJF360N70G2-ZT06	700	12	330	380	4	3	26	753	TO-220FZ-T06	CRJF360N70G2-ZT06
MCJF360N70G2	MCJF360N70G2	700	12	330	380	4	3	26	753	TO-220F	CRJF360N70G2

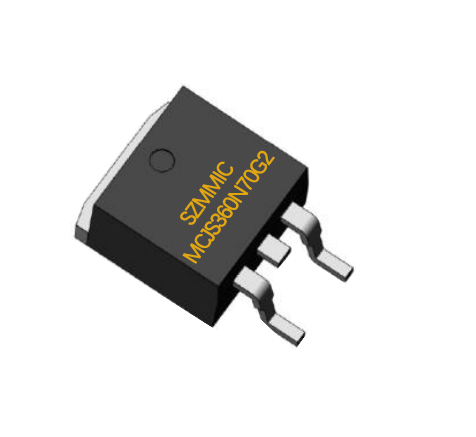

MCJS360N70G2	MCJS360N70G2	700	12	330	380	4	3	26	753	TO-263	CRJS360N70G2
MCJD360N70G2	MCJD360N70G2	700	12	330	380	4	3	26	753	TO-252	CRJD360N70G2

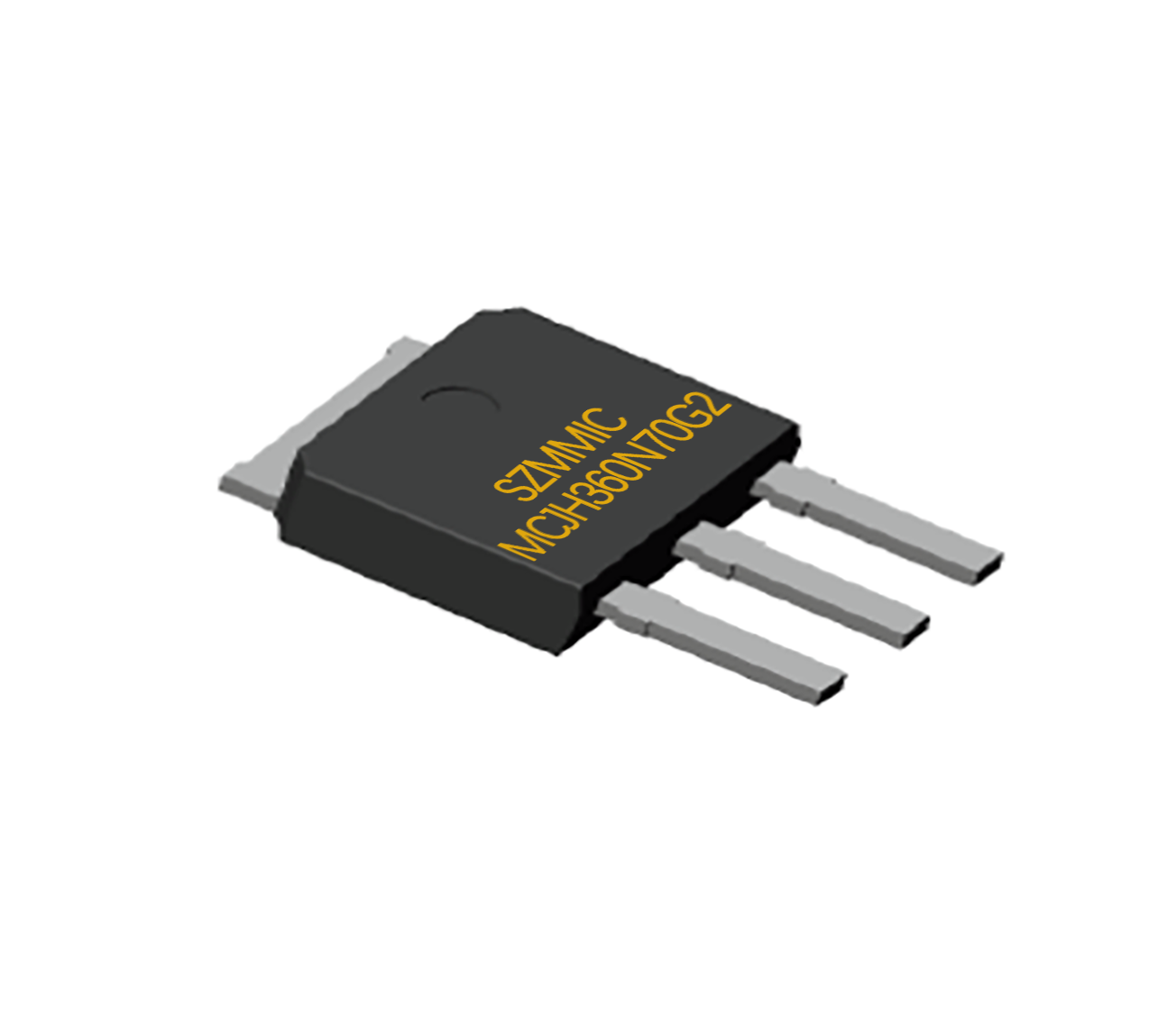

MCJH360N70G2	MCJH360N70G2	700	12	330	380	4	3	26	753	TO-251/TO-252	CRJH360N70G2
MCJH550N65G2	MCJH550N65G2	650	8	420	550	4	3	15.6	470	TO-251	CRJH550N65G2
MCJD550N65G2	MCJD550N65G2	650	8	420	550	4	3	15.6	470	TO-252	CRJD550N65G2
MCJF550N65G2	MCJF550N65G2	650	8	420	550	4	3	15.6	470	TO-220F	CRJF550N65G2

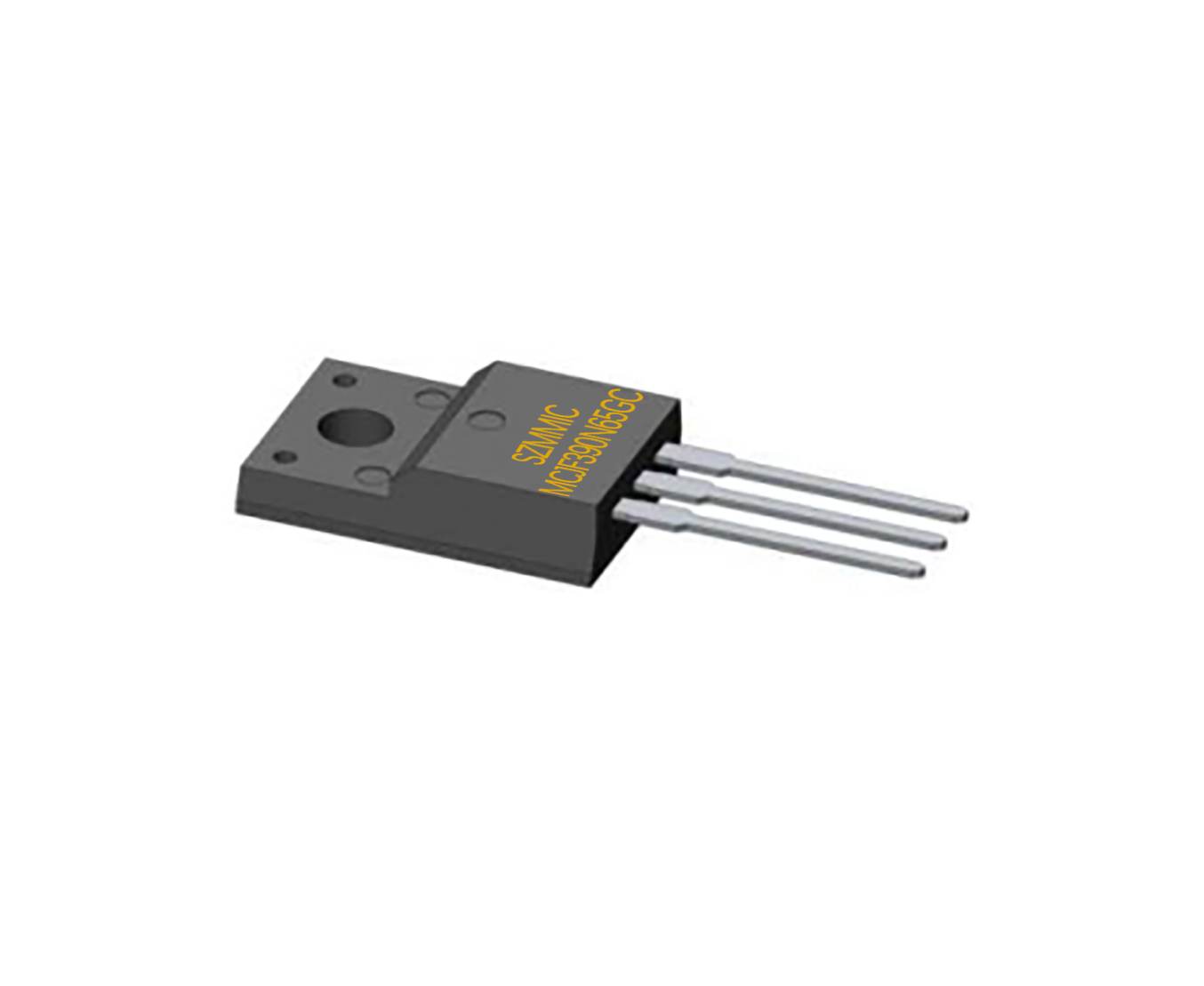

MCJF390N65GC	MCJF390N65GC	650	11	390	450	4.5	3.5	22	790	TO-220F	CRJF390N65GC
MCJH390N65GC	MCJH390N65GC	650	11	390	450	4.5	3.5	22	790	TO-251	CRJH390N65GC
